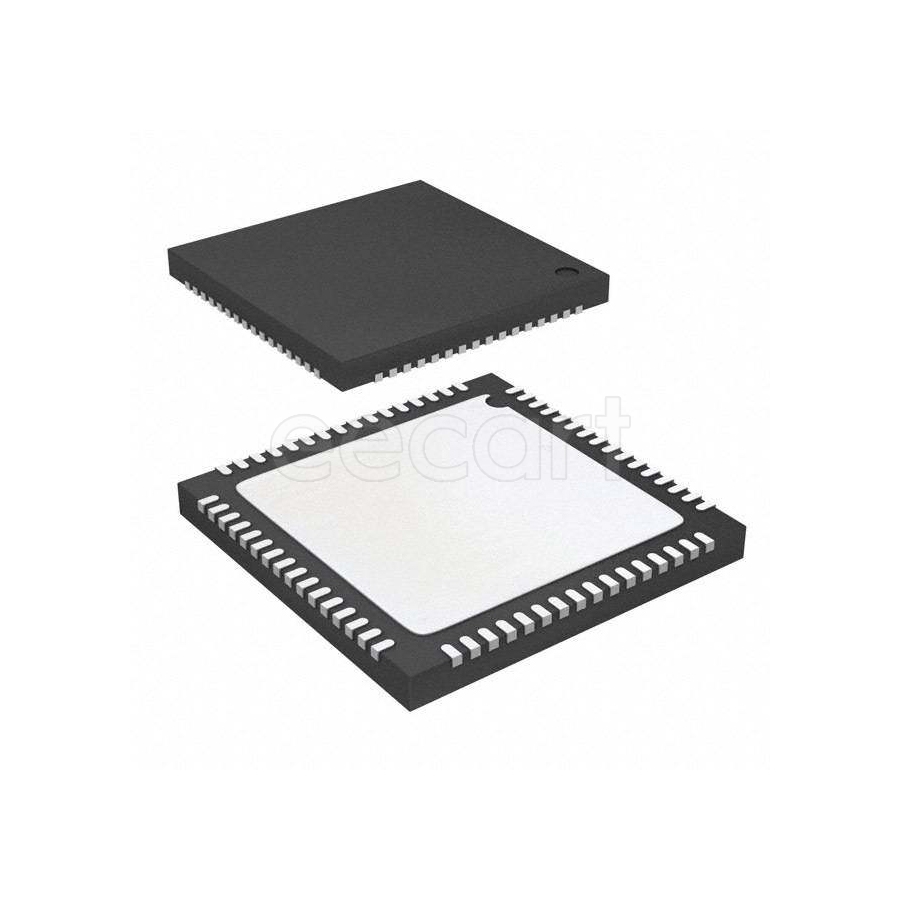

AD9558BCPZ
Manufacturer:
Analog Devices
Mfr.Part #:
AD9558BCPZ
Datasheet:
Description:
Clock Generators, PLLs, Frequency Synthesizers LFCSP-VQ-64 SMD/SMT Yes 1.25 GHz
| Parameter | Value |
|---|---|
| Length | 9.1 mm |
| Width | 8.85 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 64 |
| Height | 950 µm |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 1.25 GHz |
| Interface | I²C, SPI |
| Number of Circuits | 1 |
| Operating Supply Voltage | 3.3 V |
| Output Type | CMOS, HSTL, LVDS |
| Max Supply Voltage | 1.89 V |
| Min Supply Voltage | 1.71 V |
| Logic Function | Translator |
| Max Frequency | 1.25 GHz |
| Input | CMOS |
| Number of Outputs | 6 |
| Nominal Supply Current | 230 mA |
| PLL | Yes |
| Ratio - Input:Output | 4:6 |
| Differential - Input:Output | Yes/Yes |
Stock: 14
Distributors
pcbx
pcbxUnit Price$25.22640
Ext.Price$25.22640
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $25.22640 | $25.22640 |
| 10 | $17.58504 | $175.85040 |
| 25 | $17.58398 | $439.59950 |
| 50 | $17.58293 | $879.14650 |
| 100 | $17.58188 | $1758.18800 |
| 300 | $17.58083 | $5274.24900 |
| 500 | $17.57978 | $8789.89000 |
| 1000 | $17.57906 | $17579.06000 |
